Video Switch – Switch Between Multiple Video Inputs and Display Them Various Output Devices

August 1st, 2010

A Video Switch allows a user to feed video inputs into the unit and output to a separate display. It is available in many sizes including 2, 4, 8 and 16 inputs to a single output and can be cascaded or daisy-chained to increase the potential number of inputs. Switching between them is also possible by using either the front panel push buttons or via infra red remote control. The switching is totally passive as no external power or batteries are required. Installation is simple as it is hot pluggable. This device maintains excellent video quality providing crisp, clear images at high resolutions up to 1600×1200 and 480p, 720p, 1080p. The pixel frequency is 250 MHz.

Available in many types, the most commonly used is the VGA Switch. Also known as a monitor switch, this device is compatible with the VGA connector type such as the ones found on a computers’ graphics adapter. Supporting the DDC1, DDC2, DDC2B, DDC2B+, DDC2AB, this device is compatible with multisync SVGA, VGA, & XGA monitors and is also compatible with PCs, MACs and SUNs with VGA video. They are equipped with a feature which allows auto skip over power off, a computer in suspended mode or an unplugged VGA cable. This product also has the desired regulatory approvals from FCC, CE and RoHS.

The new category has the ability to simultaneously connect several DVI (digital video interface) video sources and switch between them on a single DVI video display. This type of switch is called the DVI Switch. This device is also available with an audio option. Since it combines DVI interface with audio, a user no longer needs to have separate setups for display and audio. It can output sound and video signals from 4 DVI or analog video sources on a single DVI display and set of multimedia speakers. These switches have LED display for easy status monitoring and have a built in Amplification circuitry to make sure that signal doesn’t degrade even when extended to long distances. They support Windows and Mac host systems.

These switchers are an ideal accessory for home theaters, multi media and digital signage applications. With the help of the Video Switch, a user can present information from many computers to a single device simultaneously.

See Also : digital camera led tv review camera AcousticGuitars CasioSportMenwatches SLRCameras

No comments »

Posted in Hdmi Switch Articles

Tags:

ViewHD Premium HDMI 4×2 Matrix v1.3 with SPDIF Digital Optical & Hi-Fi Stereo Audio Output (The most versatile HDMI 4×2 Matrix on the market!)

June 15th, 2010

ViewHD Premium HDMI 4×2 Matrix v1.3 with SPDIF Digital Optical & Hi-Fi Stereo Audio Output (The most versatile HDMI 4×2 Matrix on the market!) Review

Available at Amazon Check Price Now!

This is a very good product. The Amazon description is poorly written, not telling clearly what the product does. Let this review serve as an alternate description.

What I wanted was a switcher-splitter that would allow me to imput my blue-ray player, satellite box and up to two other imputs, and route whatever I put in either to either my 1080p 47-inch monitor or my older 720p 28 inch. I like crisp images, hate blurs and accordingly get distracted abd annoyed by watching low-def content on my big monitor.

I also like to keep a tv-program, like a sport event, on, either muted or with low volume, while watching a movie, so that when something exciting begins to happen on the tv probram I can pause the movie and volume-up the tv program. This product does just what I wanted it to, which the Amazon description does not make clear. Any of the four HDMI inputs, labled 1,2,3 and 4, can be routed to either of the two HDMI outputs, labeled A and B, and the two outputs can simultaneously sport different inputs you select, just as I wanted.

There is also an optical cable audio output so that you can route the audio of whichever of the four inputs you select for HDMI output A to a home-theater amp. The sound still goes out output A. This is great.

There is one negative to this product. It is that the manual is in some language written in characters. I think it is Chinese. But you have to be pretty dumb not to be able to figure out how to work this product without a manual.

ViewHD Premium HDMI 4×2 Matrix v1.3 with SPDIF Digital Optical & Hi-Fi Stereo Audio Output (The most versatile HDMI 4×2 Matrix on the market!) Feature

  • HDMI True Matrix 4×2, Any Input to Any Output Fully Independent
  • Audio Signal from Any Input Can Be Obtained from SPDIF Digital Optical and Hi-Fi Stereo 3.5mm outputs @ Output A
  • HDMI 1.3 Certified; HDCP 1.2; V1.3 signal in, V1.3 signal out
  • Audio: DTS-HD/Douby-trueHD/LPCM7.1/Dolby-AC3/DSD
  • Full Metal Compact Jacket, Durable Construction (Not cheap plastic package).

ViewHD Premium HDMI 4×2 Matrix v1.3 with SPDIF Digital Optical & Hi-Fi Stereo Audio Output (The most versatile HDMI 4×2 Matrix on the market!) Overview

This is the latest product of HDMI 4×2 matrix with SPDIF digital optical and Hi-Fi stereo audio 3.5mm headset outputs, make it potable and flexible for various A/V system setups. This is the Most Versatile HDMI 4×2 Matrix On the Market, first introduced by J&R Galaxies.

This well made HDMI Matrix 4×2 metal jacket package is V1.3 Certified. This unit is HDMI 1.3; V1.3 signal in, V1.3 signal out; It is the ultimate combination of 1×2 Splitter and 4X1 Switches; the two output signals can be different or the same. A great product to meet the demand of ever changing home theater needs. * Support video color format: 24-bit, deep color 30-bit and 36bit; * Support HDMI 1.3 digital audio format: DTS-HD / Dolby trueHD / LPCM7.1 / DTS / Dolby-AC3 / DSD; * Support XvYCc, if your enjoy deep color video, your source and display also need to support it; * Support Blu-ray/HD-DVD player for 24fs / 50fs / 60fs film format; If you enjoy watching 24fs film, please make sure your display suppports 24fs, else it will display 50fs /60fs pictures; * Support CEC; * Support input cable distance up to 15m HDMI AWG24; * Support output cable distance up to 25m HDMI AWG24; * Support signal retiming; * Inputs can be switched with the IR remote control, also can be controlled by built-in select buttons; * No loss of quality; * Free lifetime technical support from the manufacture; * Need DC5V/2A power supply (Included) * Operating Temperature Range: -15C to +55C; * Operating Humidity Range: up to 90 RH (No Condensation). * Comes with 8 key remote, DC power adapter; * Weight:325g; * Size: 13.4cm x 9cm x 2.2cm

Available at Amazon Check Price Now!

*** Product Information and Prices Stored: Jun 15, 2010 20:29:05

Related : jewelry gemstone review hybrid bikes Cutlery Exoticcar

No comments »

Posted in ViewHD

Tags:

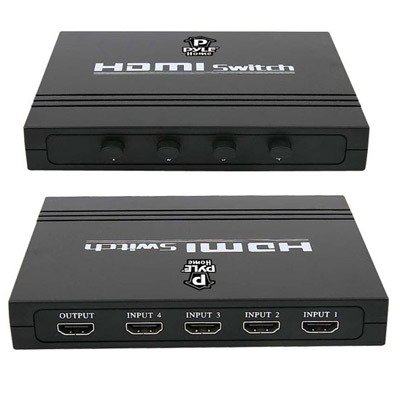

Pyle Home PHDMSWM4 High Definition HDMI 4 Source Input and 1 Source Output Manual Mechanical Switcher

June 9th, 2010

Pyle Home PHDMSWM4 High Definition HDMI 4 Source Input and 1 Source Output Manual Mechanical Switcher Review

Available at Amazon Check Price Now!

I actually wanted a one-in, multi-out switch instead of the multi-in, one-out switch because I have a Blu-ray player and wanted to feed either the LCD monitor, or the projector. Since these are purely mechanical switches, they don’t care about signal direction. It appears to work in reverse direction as expected.

Just in case the devices don’t like signal glitches while powered, I will avoid switching the connection while the devices are on, though. Basically, I’ll know which display I want to use before turning anything on, so I’ll select the connection number on the switch, and then turn the devices on.

Unless the HDMI connector standard changes or something, these can’t get outdated, so that’s another plus. Depending on the switch quality, it may limit bandwidth, though, so it may not properly pass really high bandwidth signal, say, 4000×2500 or something, but I wouldn’t know what the limit is. The only other possible problem is that the switch contacts may eventually wear out and cause intermittent glitches or limit bandwidth enough to prevent even standard bandwidth signal (e.g. 1920×1080@60) from working properly.

For now, it seems to work fine, so I’m happy with it.

Pyle Home PHDMSWM4 High Definition HDMI 4 Source Input and 1 Source Output Manual Mechanical Switcher Feature

  • Inputs can be selected from button on the front panel
  • HDMI-HDMI cable can be used to connect the inputs or output
  • Suitable for 1080p and Lower Video formats

Pyle Home PHDMSWM4 High Definition HDMI 4 Source Input and 1 Source Output Manual Mechanical Switcher Overview

The HDMI switch is designed to allow your Multiple High Definition Audio & Video equipment to a HD Ready TV using concise space saving and time saving Technology. The HDMI switch allows more than one HDMI devices to share one HDMI compatible monitor, HDTV or projector.

  • Suitable for 1080p and Lower Video formats
  • Support digital video and audio by HDMI standard 1.3 Specification
  • HDMI-HDMI cable can be used to connect the inputs or output
  • Inputs can be selected from button on the front panel

    • Available at Amazon Check Price Now!

    *** Product Information and Prices Stored: Jun 09, 2010 11:23:38

    Related : jewelry gemstone led tv gps Lenses Canonbatterycharger

    No comments »

    Posted in Pyle

    Tags:

    Key Digital KDHDMI4×1 4 Inputs to 1 Output HDMI Auto Switcher

    March 12th, 2010

    Key Digital KDHDMI4×1 4 Inputs to 1 Output HDMI Auto Switcher Review

    Available at Amazon Check Price Now!

    Key Digital KDHDMI4×1 4 Inputs to 1 Output HDMI Auto Switcher Overview

    KD-HDMI4X1 switchers by Key Digital(R) are state-of-the-art HDMI (HDCPcompliant) multi-input to one output switchers that maintain crystal-clear, pristine picture and sound quality. KD-HDMI4X1 switchers are a transparent solution for home theaters, custom installers, retailers, and all digital video/audio switching applications. KD-HDMI4X1 switchers support ALL digital HD and SD video standards including 1080p/60, and a multitude of analog and digital audio formats. KD-HDMI4X1 switchers feature iAS(TM) Intelligent Auto Sense signal detection and switching, pushbutton control, statusmonitoring LEDs, IR remote control, and support for HDMI`s CEC. KD-HDMI4X1 switcher support multiple unit expandability, are individually addressable and DVI-D compatible with Key Digital(R) adapters and cables.

    Available at Amazon Check Price Now!

    *** Product Information and Prices Stored: Mar 11, 2010 11:33:15
